Why EMC Test Results Vary Between Different Laboratories & How to Ensure Test Accuracy

When the same product is tested at two different labs, EMC results often differ significantly.Many tend to question lab credibility at first. In fact,EMC testing is a complex systematic work affected by test site conditions,product operating status,load impedance,test links, electromagnetic coupling and distributed parameters. Minor variables can lead to obvious data discrepancies.

Root Causes of Result Deviations

Every EMC laboratory has inherent measurement uncertainty,which is specified in official test reports from mainstream organizations including UL,SGS,DEKRA,TÜV SÜD and Intertek.

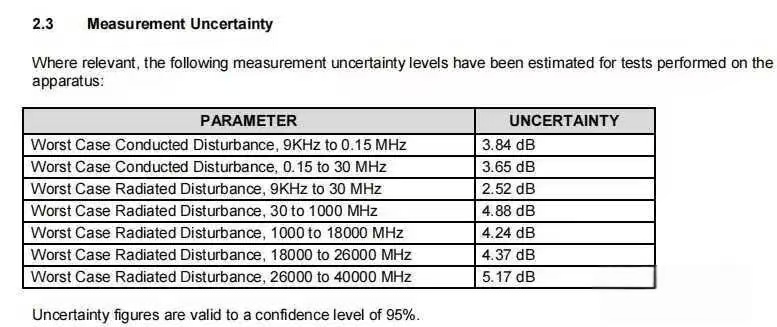

Measurement Uncertainty in an EMC Laboratory Report

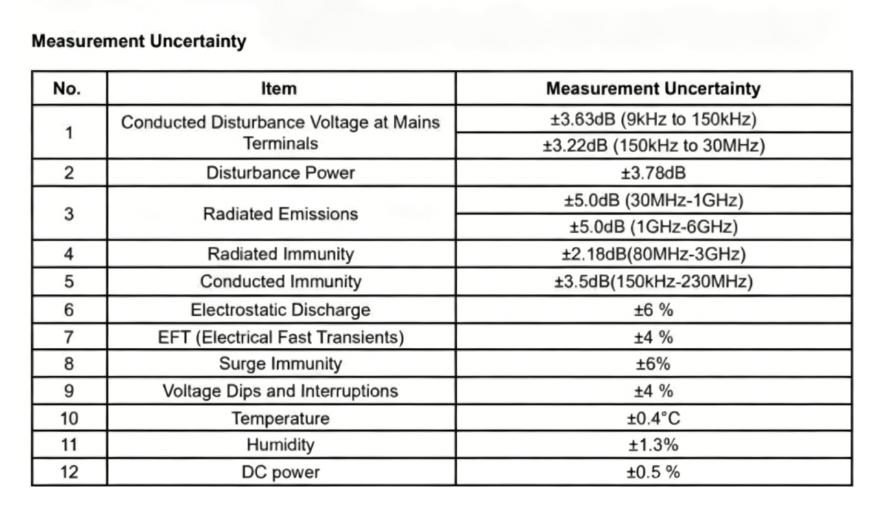

Measurement Uncertainty – An EMC Report from SGS Laboratory

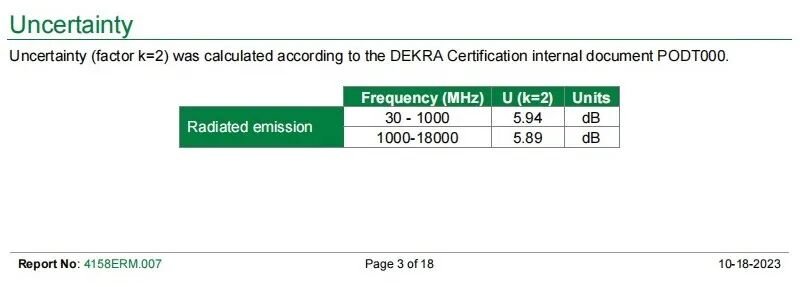

Measurement Uncertainty – An EMC Report from DEKRA Laboratory

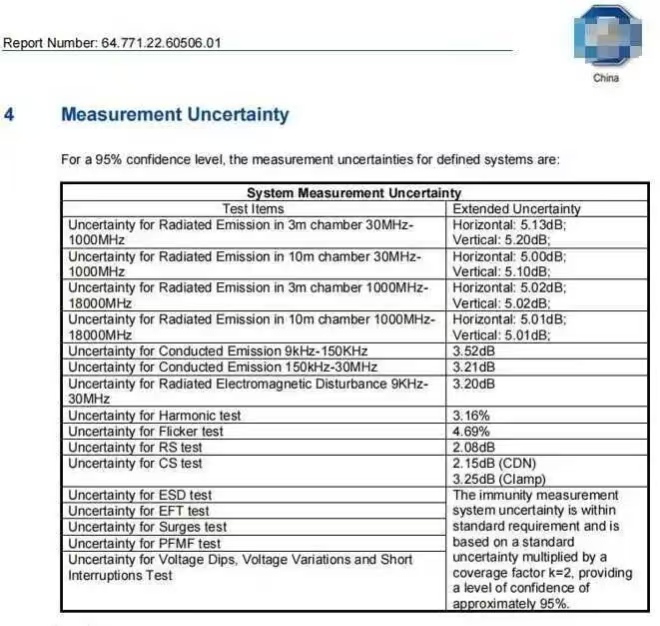

Measurement Uncertainty – An EMC Report from TÜV SÜD Laboratory

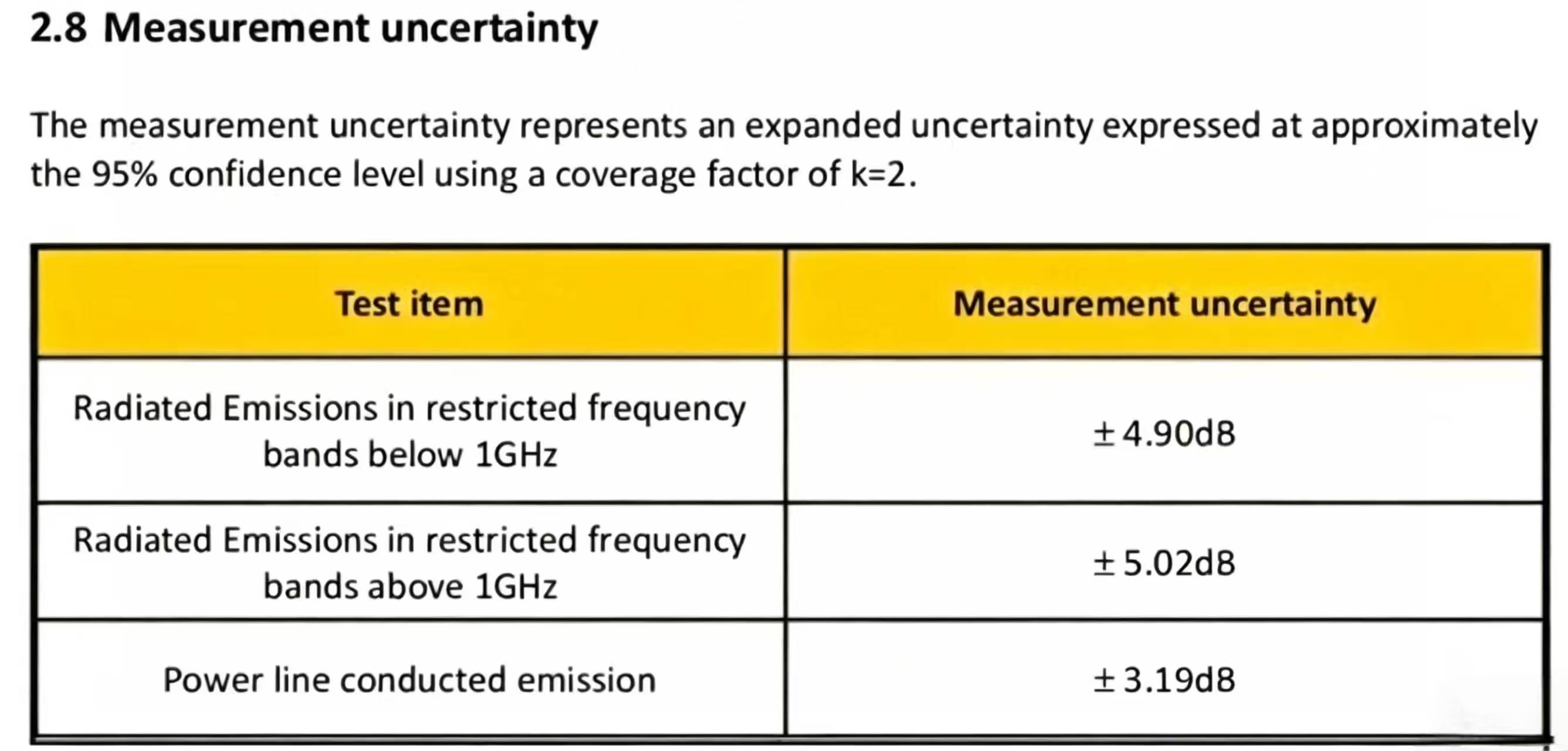

Measurement Uncertainty – An EMC Report from Intertek Laboratory

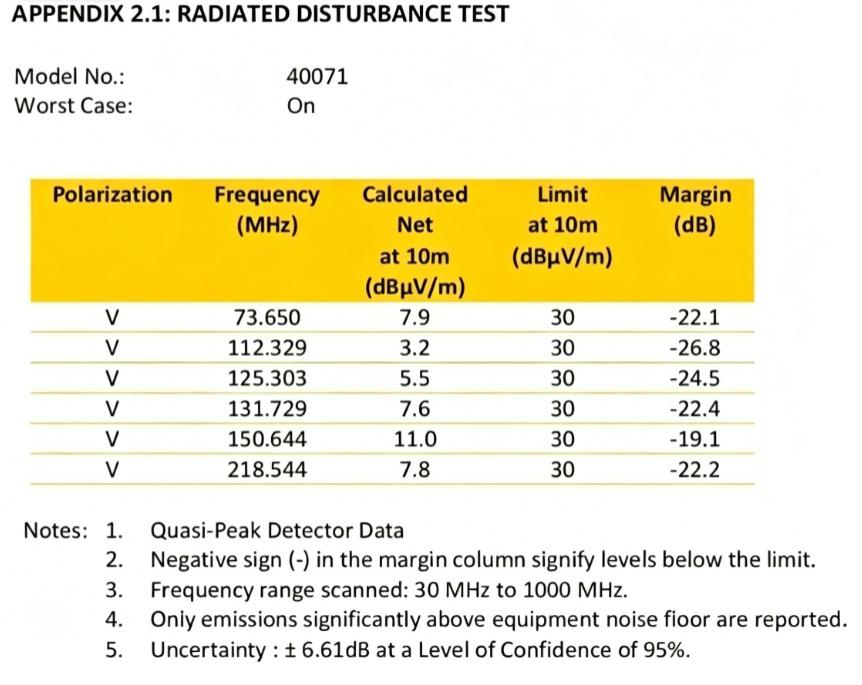

Measurement Uncertainty – An EMC Report from Intertek HK Laboratory

Inconsistent Test Conditions (Most Common Cause) EMC data is highly sensitive to circuit transient characteristics (di/dt, dv/dt).

• Product status: Differences in preheating duration and operating modes (full load, half load, no load).

• Layout arrangement: Cable routing, spacing and height above ground. A 5 cm offset may cause several dB fluctuations at GHz frequency bands due to electromagnetic coupling changes.

• Load characteristics: Resistive, inductive and capacitive loads have distinct impedance features, which alter loop impedance and noise spectrum.




Performance Drift Caused by Temperature Sensitivity

Inductors, transformers and semiconductors are temperature-sensitive. Rising temperature during testing changes magnetic core saturation and device voltage drop, further affecting voltage and current transient features and final results.

Component Parameter Tolerance

Resistors,capacitors and inductors normally have a tolerance up to 25%. Deviations in parasitic parameters and distributed capacitance change the rise/fall time of pulse signals, thus reshaping the spectrum envelope.

Equipment & Human Factors

Differences in test receivers, detectors, background noise, calibration status and test distance will impact data. Besides,engineers’ understanding of standards,as well as changes in internal wiring,screw tightness and grounding during product disassembly and reassembly,will also cause non-compliant results.

Solutions to Guarantee Test Accuracy

Standardize Test Conditions & Operating Procedures

Define worst-case operating modes, and unify preheating rules.Adopt standardized loads and fix product placement and cable routing with photo records to ensure full repeatability.

Full Equipment & Site Traceability

Carry out annual calibration and interim verification for receivers, antennas, cables and pre-amplifiers,and correctly input calibration factors. Regularly verify anechoic chamber performance with standard signal sources.

Reserve Sufficient Test Margin

Evaluate product design margin comprehensively to resist component parameter deviations.Analyze dominant noise paths of parasitic parameters,and optimize circuit layout and parameters fundamentally to enhance anti-interference performance.

Summary

Result deviations do not equal inaccurate lab tests,but reflect the strict consistency requirements of EMC testing.We deliver reliable test data via strict standardization of all variables.Meanwhile,we provide professional technical consulting to solve EMC issues.

We recommend conducting a pre-test evaluation before official submission to confirm load features and operating modes, lock standard test conditions and eliminate uncertain factors, so as to maximize test accuracy and reliability.
